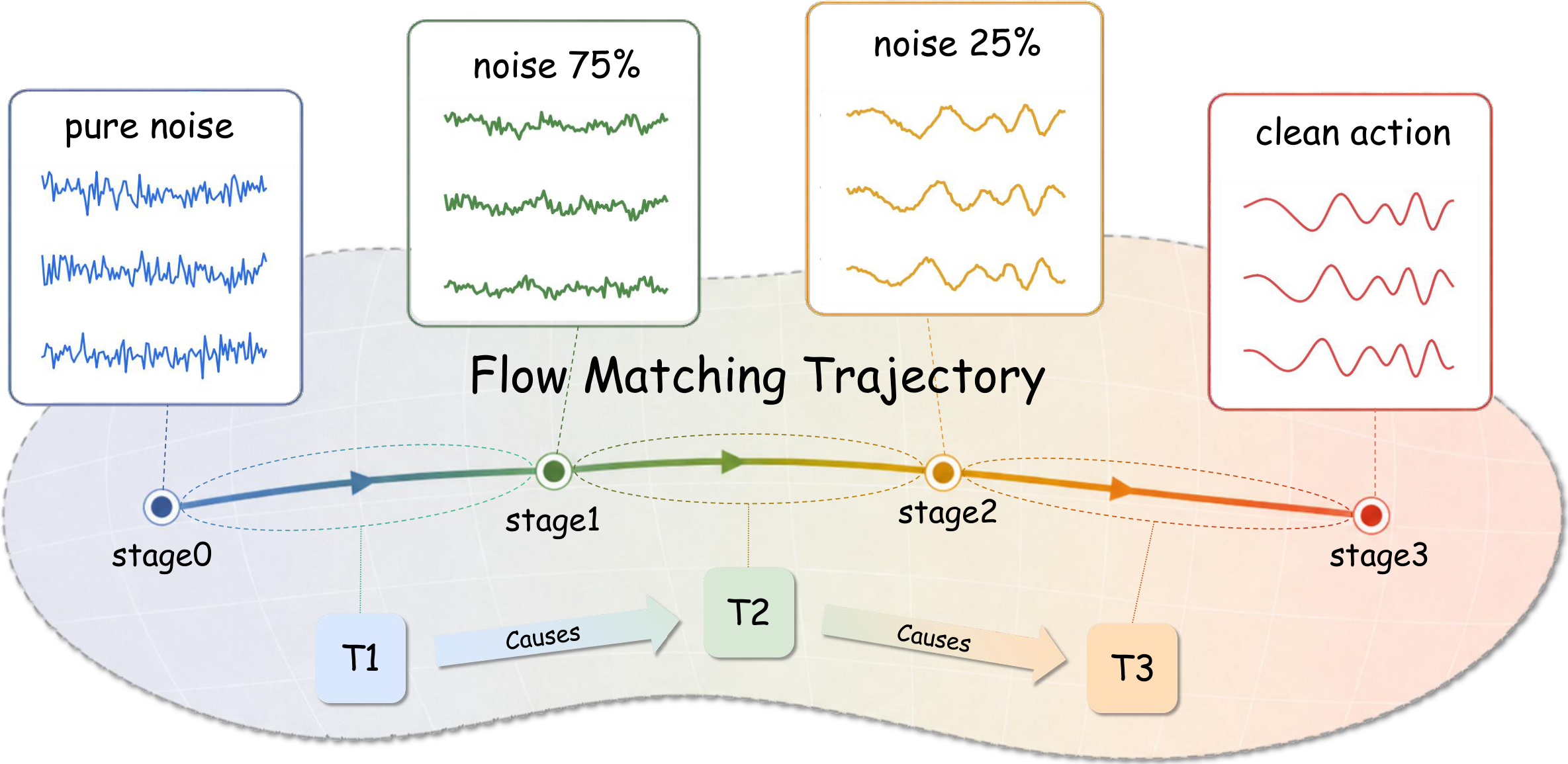

CATok reframes action tokenization as a causally structured generative process. Each discrete token encodes the residual reconstruction signal at a specific flow-matching stage, establishing a coarse-to-fine causal token space aligned with autoregressive modeling.
Autoregressive Vision-Language-Action (VLA) models offer a scalable path to robot learning, yet existing action tokenizers treat tokenization as a compression problem, producing representations that are semantically misaligned with the autoregressive backbone. We propose CATok, a causal action tokenizer that reframes tokenization as a causally structured generative process.
CATok introduces a conditional annealing mechanism that extracts action tokens by progressively annealing a flow-matching process: each token is conditioned on all preceding tokens and encodes the residual reconstruction signal at a specific noise level, establishing a coarse-to-fine causal token space whose generative semantics are structurally aligned with autoregressive modeling. A token-conditioned flow-matching decoder built on Multimodal Diffusion Transformer (MMDiT) reconstructs continuous action chunks from these discrete tokens with the precision of hybrid diffusion-head architectures. This discrete bottleneck enforces knowledge insulation by design, cleanly separating high-level semantic reasoning from low-level motor execution without requiring explicit attention masking.
Extensive evaluations across three simulation benchmarks demonstrate that CATok consistently surpasses existing tokenization methods in reconstruction fidelity–compression tradeoff and inference efficiency, while improving VLA task success rate, establishing a high-performance, scalable foundation for purely autoregressive VLA systems.
CATok consists of three components: (1) a Dual-Stream Action Encoder that maps raw action chunks into a compact set of latent query tokens via co-attention with an MMDiT-based transformer; (2) a Bottleneck Vector Quantizer that discretizes latent tokens into a finite codebook using factorized codes; and (3) a Flow-Matching Decoder with Conditional Annealing that reconstructs high-fidelity action trajectories while enforcing a coarse-to-fine causal structure.
The key design is the conditional annealing mechanism: at flow-matching timestep t, the first ⌊tK⌋ token embeddings are progressively masked, forcing each token to specialize in a distinct generative stage—from coarse global guidance at high-noise stages to fine-grained residual corrections as the trajectory matures. This induces a causally ordered hierarchy naturally aligned with autoregressive action generation.

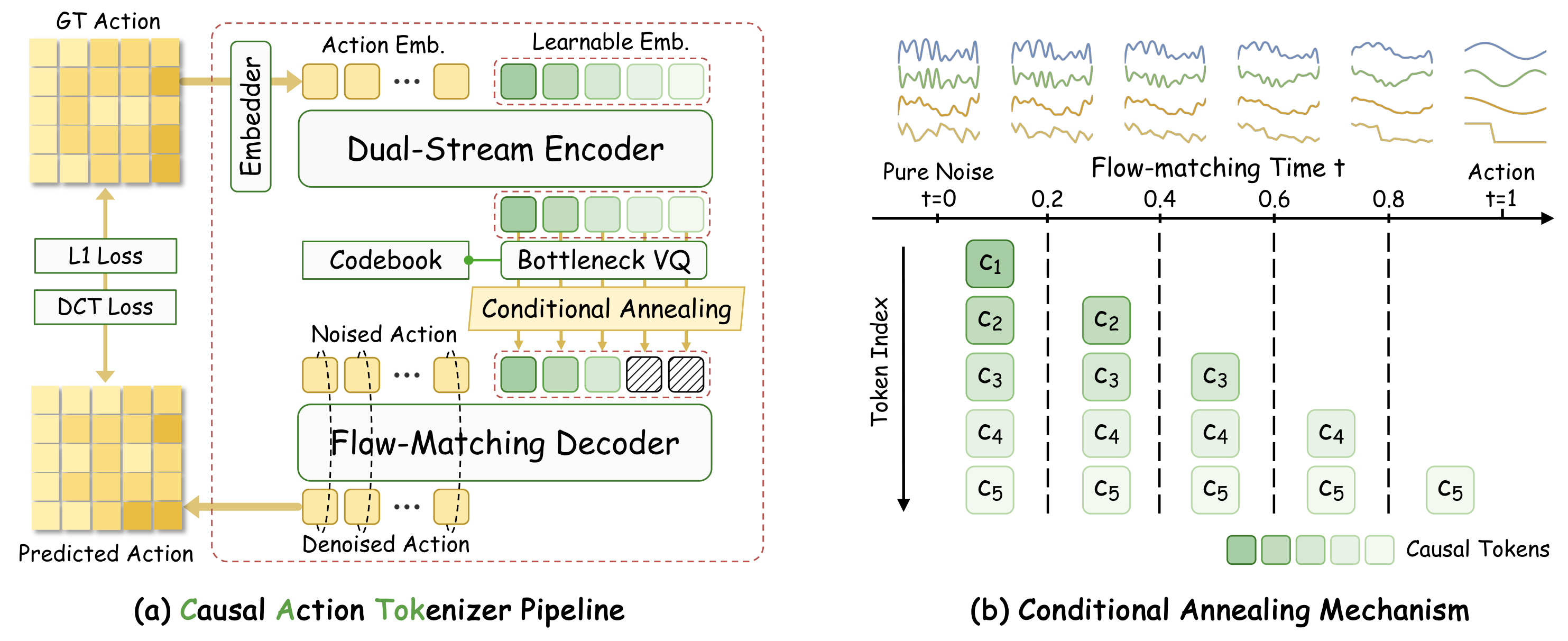

Figure 1. CATok Pipeline. CATok encodes an action chunk with a Dual-Stream Encoder into latent queries, discretizes them via a Bottleneck VQ, and reconstructs actions using a Flow-Matching Decoder with Conditional Annealing. The annealing schedule assigns each token to a distinct stage of the flow trajectory, establishing a coarse-to-fine causal token space.

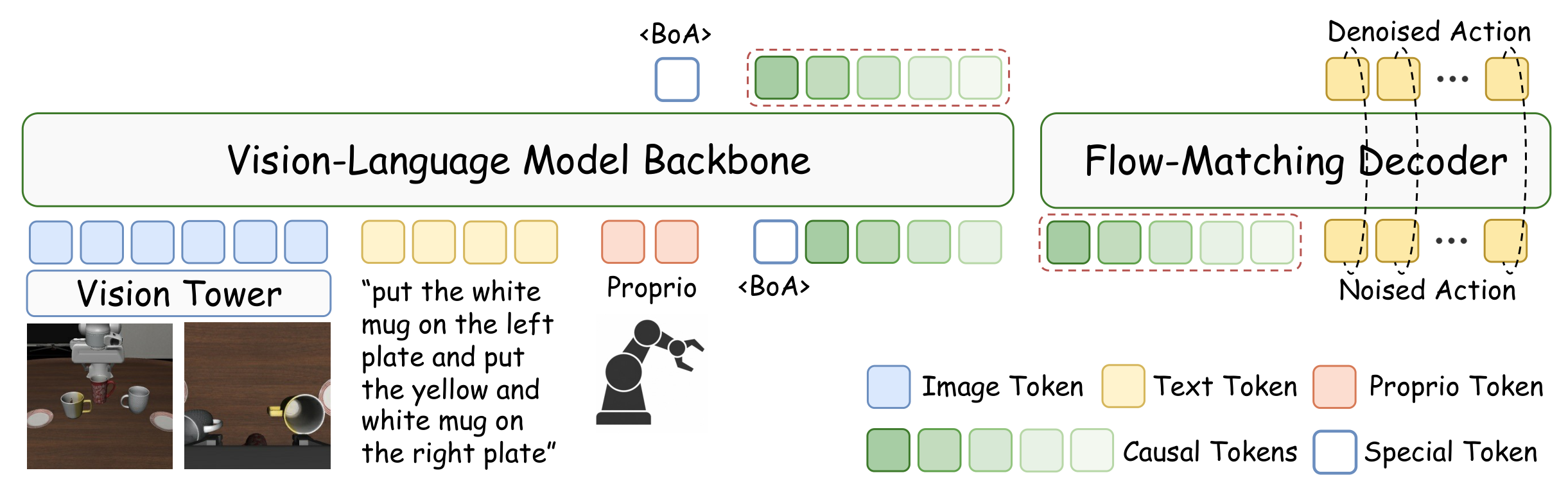

Figure 2. VLA-CATok. VLA-CATok feeds visual, language, and proprioceptive tokens into a VLM backbone to autoregressively predict causal action tokens. A frozen MMDiT flow-matching decoder reconstructs the final continuous action. Discrete tokens serve as the sole interface, naturally insulating the VLM's pretrained knowledge from action-specific gradients.
We evaluate CATok on three simulation benchmarks—LIBERO, SimplerEnv (Simpler-Bridge), and RoboTwin 2.0—against three representative tokenizer baselines: BIN (uniform per-dimension discretization), FAST (DCT-based compression with BPE tokenization), and OAT (learned fixed-length tokenizer with prefix-based decoding).
Higher task success rate. CATok achieves the highest success rates across all benchmarks (95.9% avg. on LIBERO), with the largest gains on long-horizon tasks (LIBERO-Long: 91.0% vs. 90.1% for FAST). Causal token ordering enables autoregressive policies to model long-range temporal dependencies more effectively.

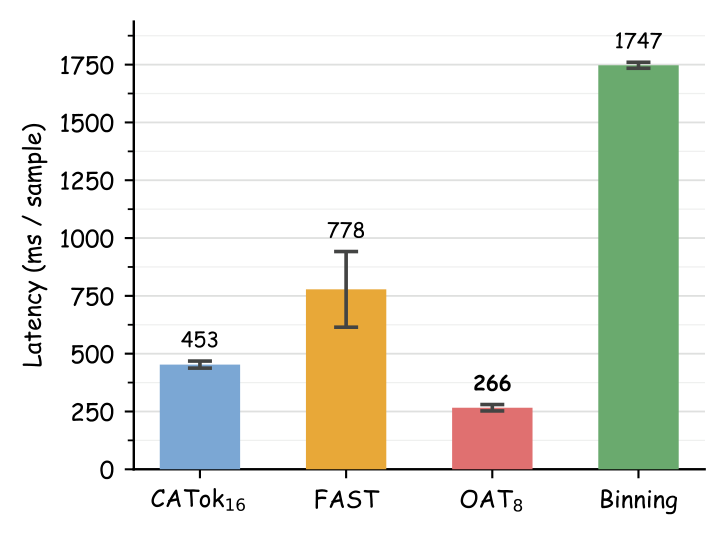

Faster inference. CATok delivers 1.7× faster VLA inference than FAST and 3.9× faster than BIN, enabling more responsive real-time deployment.
Better fidelity–compression balance. CATok achieves a 3.6× stronger VRR×CR score than FAST at the same token count, demonstrating that causal structure improves reconstruction quality without sacrificing compression.

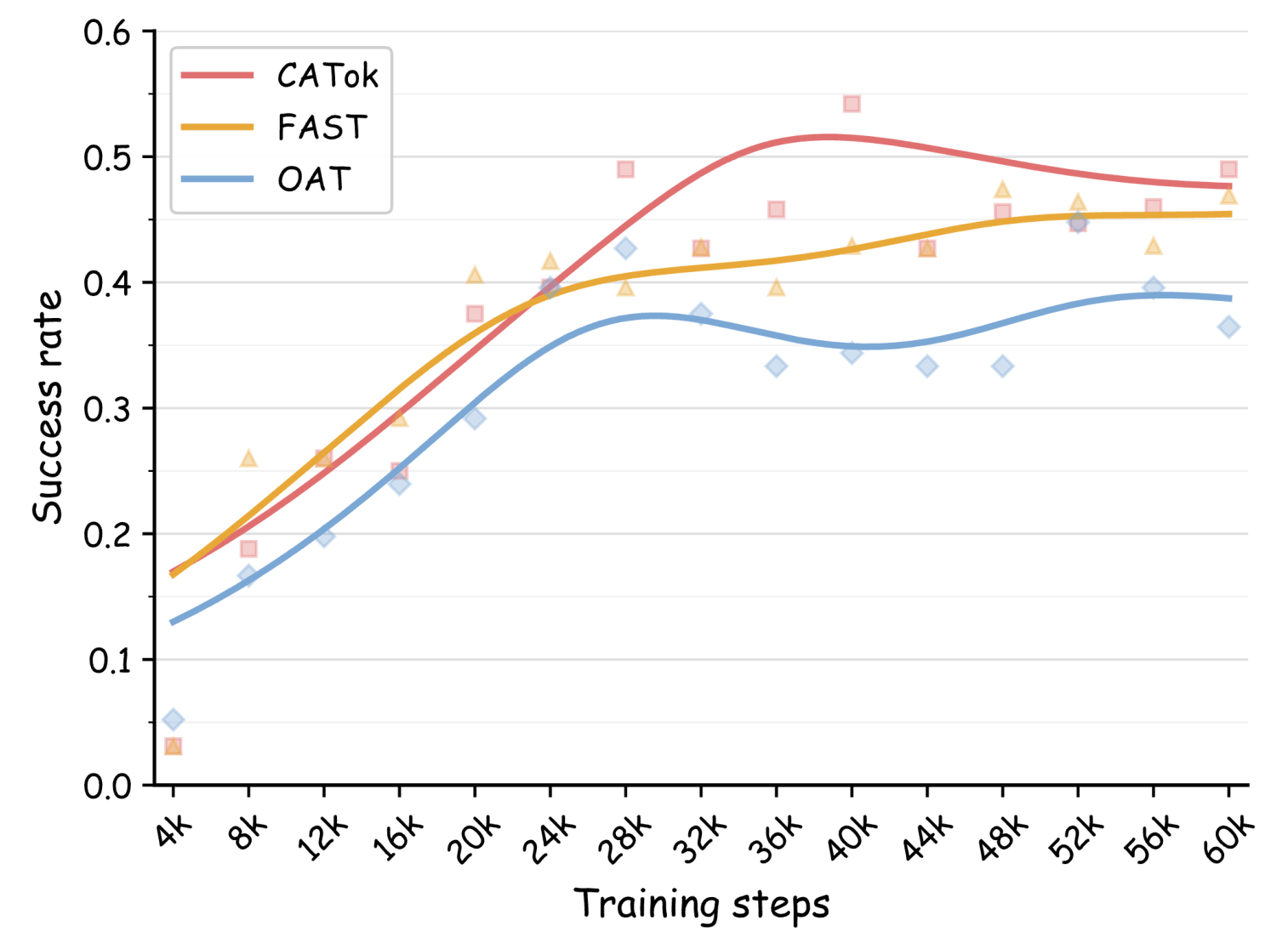

Higher training efficiency. CATok consistently reaches higher success rates at the same training step count, attributable to its stage-wise token factorization that makes each token prediction more informative for trajectory generation.
| Method | LIBERO | Simpler-Bridge | RoboTwin 2.0 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Spatial | Object | Goal | Long | Avg. | Spoon | Carrot | Stack | Eggplant | Avg. | Clean | Rand. | |
| BIN | 0.586 | 0.878 | 0.680 | 0.604 | 0.687 | 0.542 | 0.333 | 0.208 | 0.708 | 0.448 | 0.213 | 0.221 |
| FAST | 0.960 | 0.998 | 0.962 | 0.901 | 0.955 | 0.500 | 0.375 | 0.375 | 0.625 | 0.469 | 0.478 | 0.478 |
| OAT | 0.428 | 0.876 | 0.704 | 0.276 | 0.571 | 0.417 | 0.208 | 0.167 | 0.667 | 0.365 | 0.229 | 0.233 |
| CATok (Ours) | 0.978 | 0.994 | 0.954 | 0.910 | 0.959 | 0.458 | 0.417 | 0.542 | 0.542 | 0.490 | 0.489 | 0.531 |
Table 1. Simulation benchmarking results. CATok consistently outperforms baseline tokenizers across all benchmarks. Blue bold values indicate best results per column.

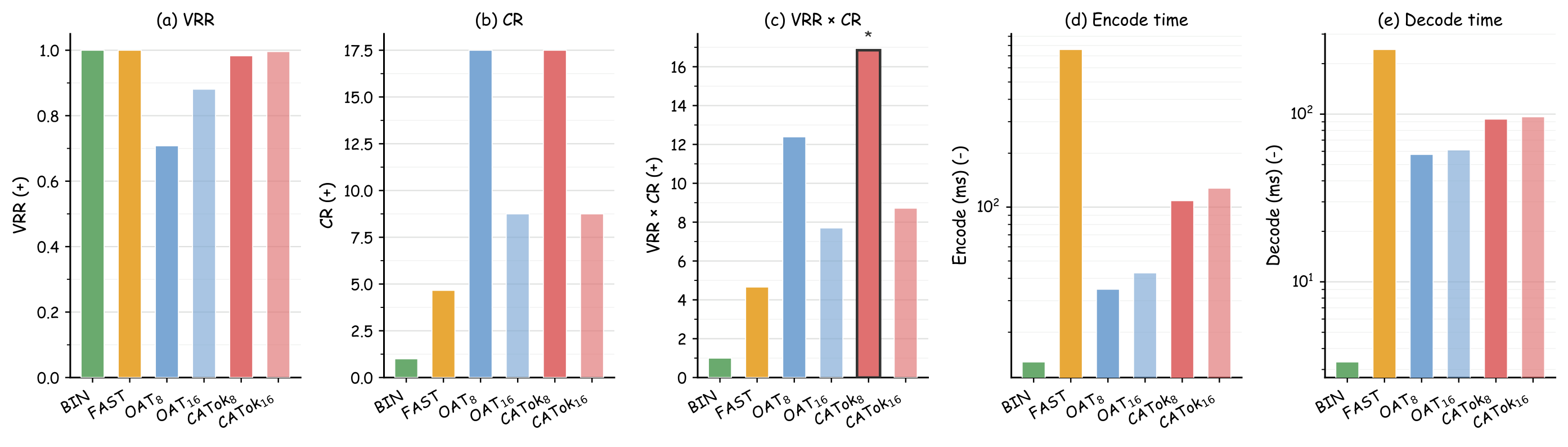

Figure 5. Intrinsic properties of action tokenizers. (a–c) CATok8 achieves the highest VRR×CR score (16.85), outperforming all baselines at the same compression level. (d–e) Encode and decode latencies on log scale—CATok achieves lower latency than FAST with comparable or better downstream performance.
Causal Predictive Ordering. Per-token Shannon entropy decreases monotonically in the forward token order (Figure 6(a)), while reversing the order flips the trend—confirming the learned ordering is directional and causal. FAST and BIN show no such structure.
Stage-wise Generative Semantics. t-SNE of VQ embeddings (Figure 6(b)) reveals clear slot-dependent geometry: early tokens form smooth elongated regions, late tokens form compact separated clusters. Prefix reconstructions (Figure 6(c)) show coherent coarse-to-fine trajectory updates, confirming each token contributes a distinct generative increment.

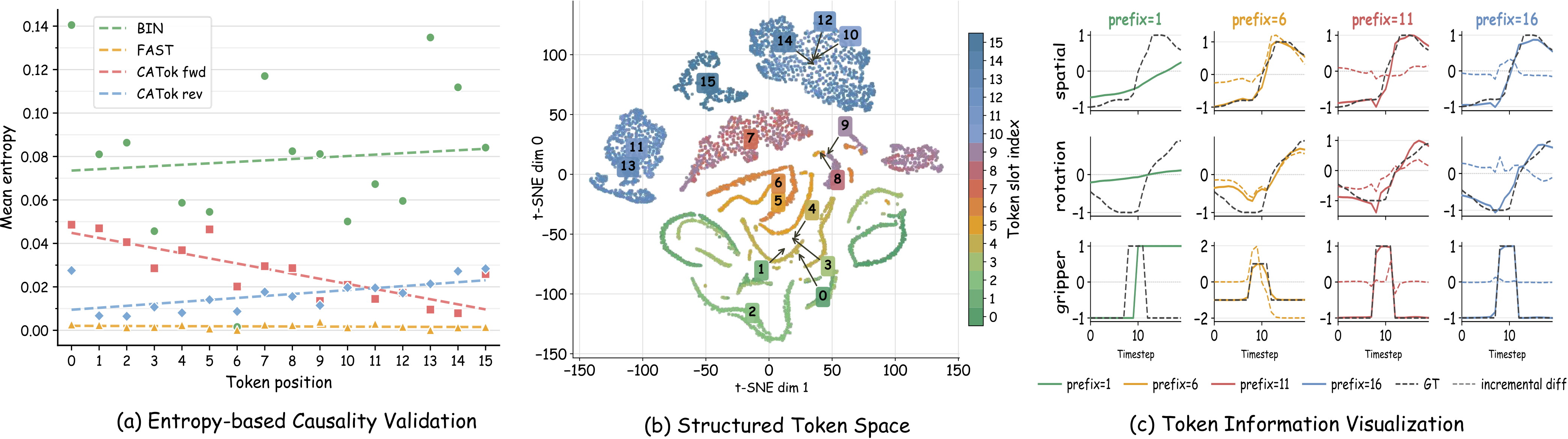

Figure 6. CATok produces causal tokens with generative semantics. (a) Causal ordering: entropy decreases in the forward token order and increases in reverse, while FAST and BIN show weaker positional structure. (b) Token embedding geometry: t-SNE map shows clear slot-dependent organization progressing from smooth early-token regions to compact late-token clusters. (c) Prefix reconstruction: increasing token prefixes produce structured trajectory updates, with each token contributing a meaningful generative increment to the decoded action.
